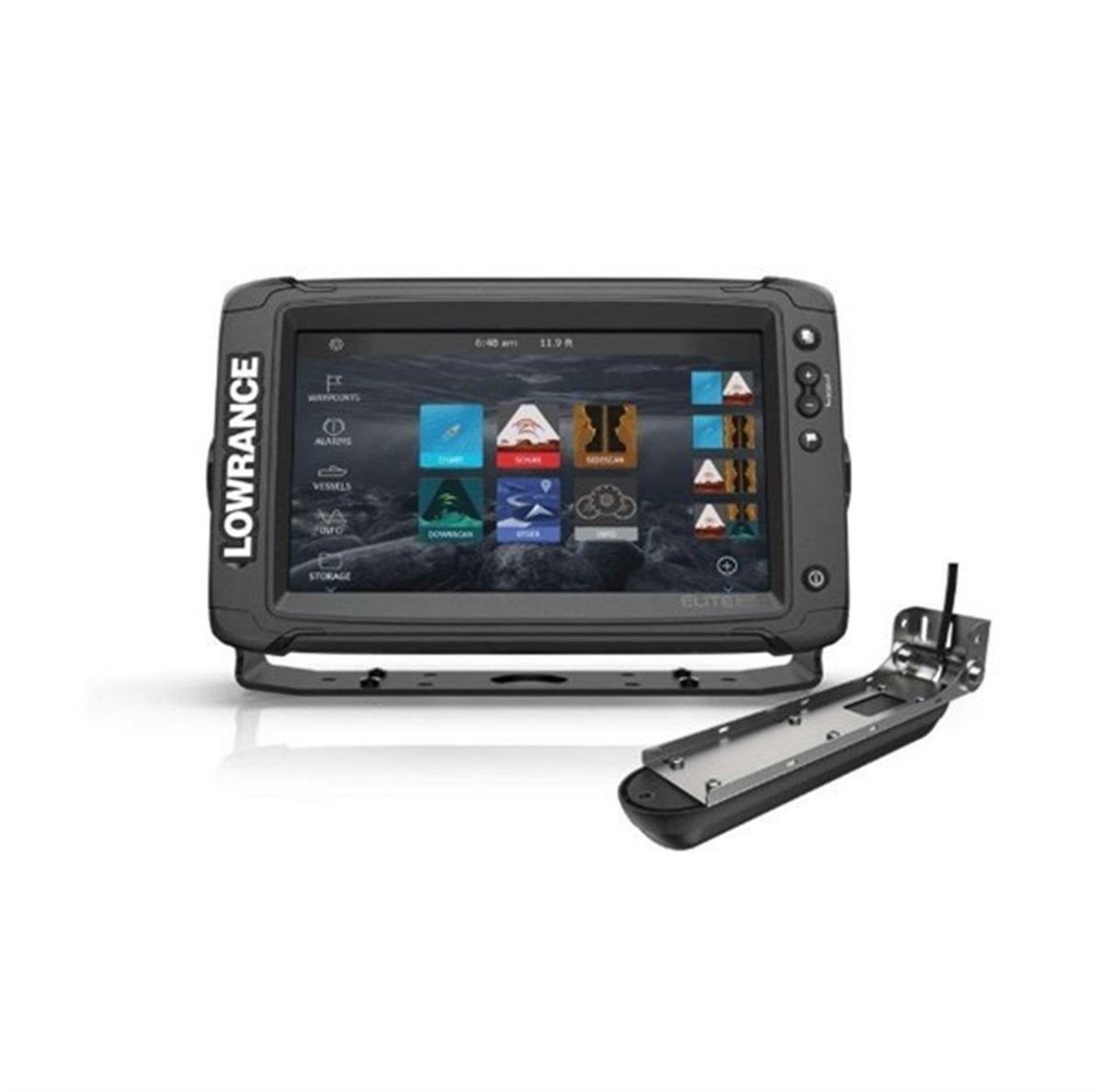

Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer
Elite-9 Ti2 Touch Active Imaging 3-in-1 Transducer

Elite-12 Ti2 Touch Active Imaging 3-in-1 Transducer

Marka : Lowrance

Elite-12 Ti2 Touch Active Imaging 3-in-1 Transducer

Lowrance Elite-12 Ti² Touch (Active Imaging 3-in-1)

The Elite-12 Ti² ROW Active Imaging 3-in-1 offers popular premium features – like an easy-to-use touchscreen, Active Imaging™ sonar, FishReveal™, wireless networking, built-in Genesis Live real-time map creation, wireless connectivity and smartphone notifications – all at a more affordable price than other fishfinder/chartplotters in its category.







Details

With the new Elite Ti², you get more advanced fishfinding features and connectivity, without the premium price. From high-detail Active Imaging™ sonar, FishReveal™, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation to features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole® integration – Elite Ti² was designed to help you have an easier time finding fish. Active Imaging 3-in-1 sonar (CHIRP, SideScan and DownScan) and 2-in-1 sonar (SideScan and DownScan) lift Elite Ti² fishfinding performance to another level, offering offer greater resolution, clarity and contrast at a range unmatched by any fishfinder in its category. Elite Ti² delivers more powerful navigation features with preloaded C-MAP® Coastal mapping, C-MAP Easy Routing + Navionics® Autorouting and Genesis Live real-time mapping. You will have a much easier time targeting key areas with US Coastal mapping. If you would rather create your own maps of a favorite fishing spot or a lake without detailed mapping, take advantage of the built-in Genesis Live real-time mapping capability to create your own, exclusive ½-foot contour maps live on the screen of your Elite Ti² display. New Elite Ti² wireless networking allows you to share sonar, waypoint and route data wirelessly between Elite Ti² displays, removing the need to run cable. With new smartphone notification capability built into Elite Ti², you can keep your eyes on the fish and never miss another text or call; or turn off notifications for uninterrupted fishing.











Key Features

  • Active Imaging 3-in-1 Sonar (CHIRP/Side/Down) Ready
  • Active Imaging 2-in-1 Sonar (Side/Down) Ready
  • C-MAP Genesis Live
  • Smartphone Notifications
  • Wireless Networking
  • FishReveal™ Smart Target View
  • Preloaded C-MAP US Coastal mapping
  • C-MAP Easy Routing, Navionics Autorouting capability
  • Easy-to-use, high-resolution touchscreen display
  • Built-in CHIRP and Broadband Sounder®
  • SmartSteer™ control for Xi5 Trolling Motor
  • Integrated wireless connectivity
  • NMEA 2000® engine support
  • Enhanced Surface Clarity lets you see more fish targets near the surface
  • Quick Access Control Bar provides one–touch access to system controls



Specifications







Display



Size 12"/ 304.8 mm (16:9)
Resolution 1280 W x 800 H
Brightness > 1200 nits
Touch Screen Yes – Single Touch
Viewing Angle 50° top, 60° bottom, 70° left/ right



Electrical



Supply Voltage 12 V DC (10 - 17 V DC min - max)
Power Consumption - MAX 22 W (1.6 A at 13.8 V DC)



Dimensions



Product Width 12.9”/ 328 mm
Product Depth 3.5”/ 89 mm
Product Height 8.8”/ 224 mm



Environmental



Operating Temp Range -15°C to +55°C (5°F to 131°F)
Storage Temp Range -20°C to +60°C (4°F to 140°F)
Waterproof Rating IPX6 and IPX7
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
Shock and Vibration 100 000 cycles of 20 G



Sonar



Power Output Max 500W RMS
Active Imaging 3-in-1 DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m: SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
CHIRP Sonar High Range/200 kHz: 1000 ft / 305 m
CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m
Available Sonar Frequencies Low/Mid/High CHIRP, 50/83/200 kHz Broadband, 455/800 kHz SideScan/DownScan imaging
Depth Alarm Yes
Shallow Alarm Yes
Temperature Readings Yes
Transducer Type 9-pin Connection, with optional 9-pin to 7-pin adapter; Multiple Selections Lowrance® and Airmar®



GPS Navigation



Routes 100
Waypoint Storage 3000
Plot Trails Up to 100 trails with up to 10,000 points per trail
GPS Antenna Type 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
GPS Alarms Yes
Custom Mapping Optional Americas chart upgrades include C-MAP Insight PRO, C-MAP Lake Insight HD, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO



Connections



NMEA 2000 1 port (Micro-C)
NMEA 0183 1 port (With Optional Power/NMEA Cable)
Ethernet No Ethernet – Wireless Networking (Two Elite Ti2 Max)
Card Slots 1 microSD
Wireless Built-in 802.11 b/g/n
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic
